BS12
Changchai engine, EPA, Euro5 standard, Kubota, Yanmar, B＆S, Koop are available
Types：Excavators

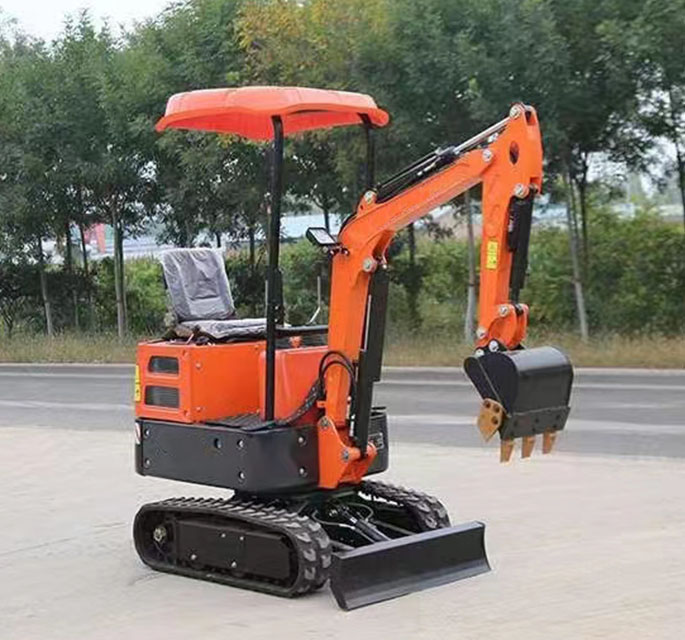

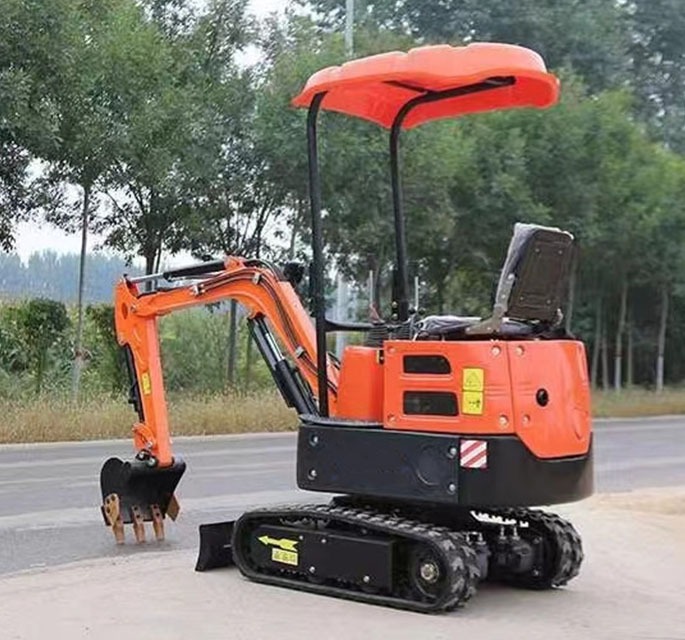

Mini excavator
-Changchai engine, EPA, Euro5 standard, Kubota, Yanmar, B＆S, Koop are available
-Energy saving and environmental protecting
-Mini excavator with the original SLSS hydraulic system, the perfect match between engine and main pump can be realized,
and the output power of engine can be maximized to improve operation efficiency.
-Actuating arm deflection and auxiliary pipeline adopt full hydraulic control, and the operation is more accurate and efficient
| Model | BS12 | |
| Specifications | Weight of the whole machine | 1000kg |
| Bucket capacity | 0.028m³ | |
| Bucket width | 370mm | |
| Boom length | 800mm | |
| Platform width | 920mm | |
| Performance | Slewing speed | 9-11rpm |
| Walking speed | 2.1Km/h | |
| Bucket digging force | 9.2KN | |
| Engine | Engine Model | Koop 192F |
| Rated power | 7.6KW | |
| Body dimensions | Whole machine size | 2770*930*2100mm |
| Track Grounding Length | 1210mm | |
| Track gauge | 740mm | |
| Scope of work | Maximum excavation radius | 2950mm |
| Maximum excavation depth | 1650mm | |
| Maximum excavation height | 2650mm | |
