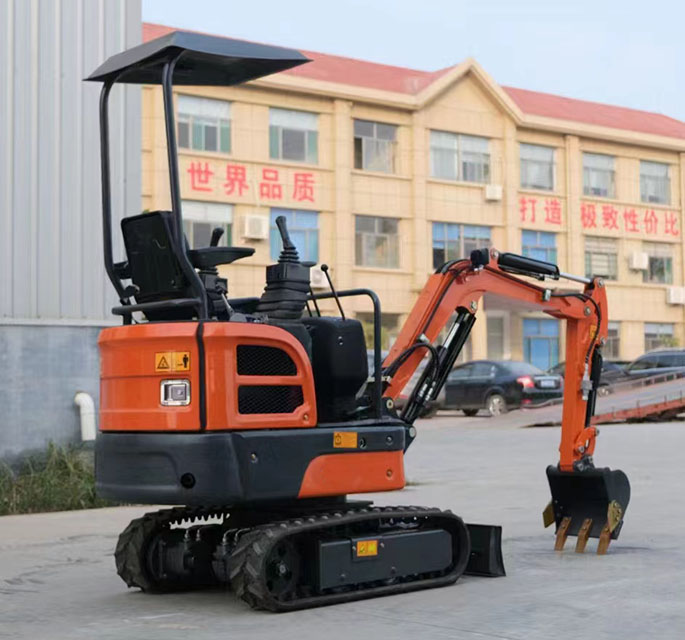

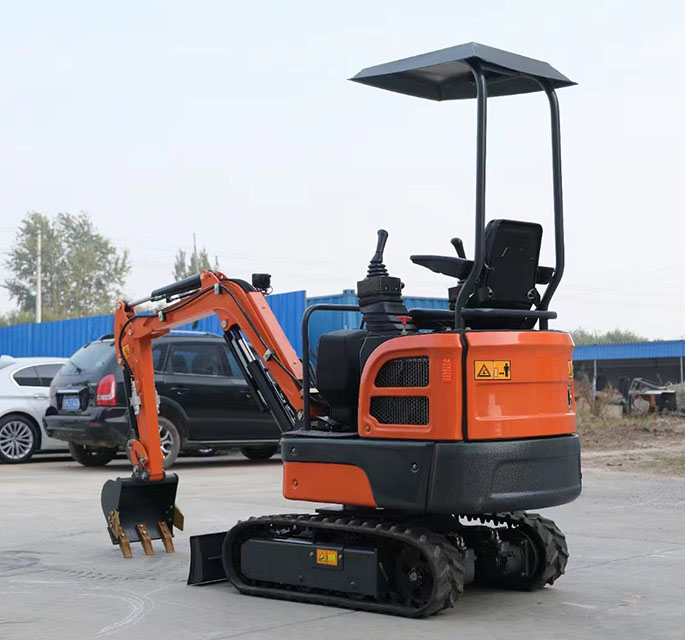

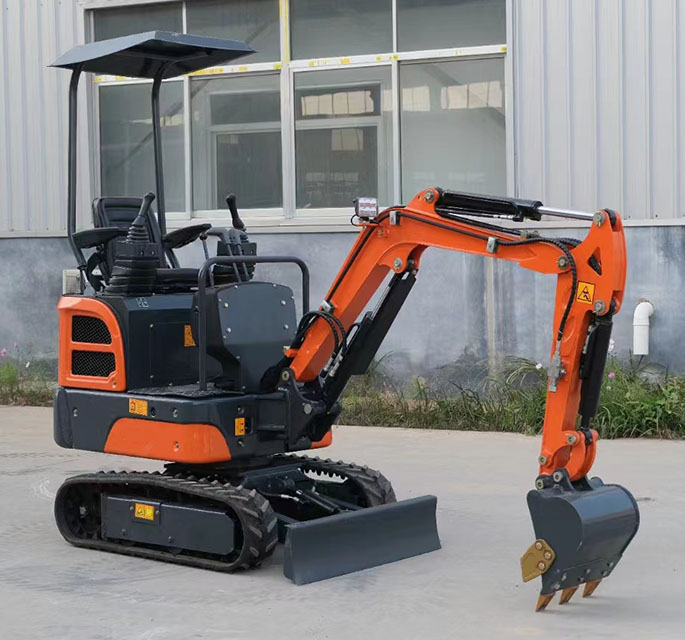

BS15
This excavator is designed for small project, garden, farmland municipal works etc, also can be used in playground, public park.
Types：Excavators
Mini Excavator, also called Crawler Excavator , Micro Excavator. It including 1 ton excavator,2 ton mini excavator,mini excavator 3 ton,long arm excavator,wheel excavator...
1 ton micro crawler excavator is with diesel engine, simple design, easy to maintain, it's reliable and of user-friendly.
With multiple functions of digging,grabbing, drilling, bull-dozing, ditch-cleaning and rock-breaking.
Come with one standard digging bucket and canopy.
Optional Accessory : Narrow bucket, Plain bucket , Ripper, Grabber, Rake, Auger and etc.
| Model | BS15 | |
| Specifications | Weight of the whole machine | 1180kg |
| Whole machine size | 3725*990*2300mm | |
| Bucket capacity | 0.028m³ | |
| Bucket width | 370mm | |
| Track length | 1210mm | |
| Track width | 180mm | |
| Boom length | 800mm | |
| Height of platform | 420mm | |
| Performance | Slewing speed | 9-11rpm |
| Walking speed | 2.1Km/h | |
| Bucket digging force | 9.2KN | |
| Engine | Engine Model | Koop 292F |
| Engine power | 14Kw | |
| Engine speed rating | 3000r/min | |
| Hydraulic system pressure | 16mpa | |
| Scope of work | Maximum excavation radius | 2950mm |
| Maximum excavation depth | 1650mm | |
| Maximum excavation height | 2700mm | |
| Tail turning radius | 700mm | |
| Max. sinking depth of the bulldozer | 230mm | |
| Max. lifting height of the bulldozer | 210mm | |
