BS20

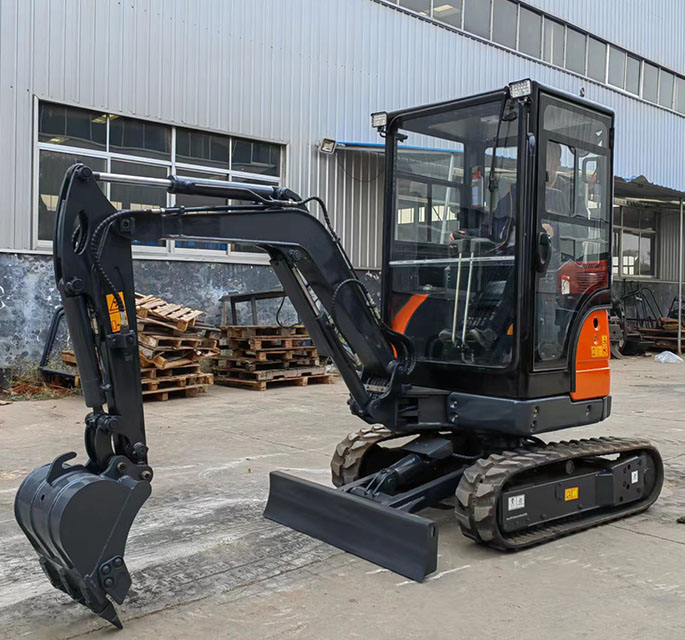

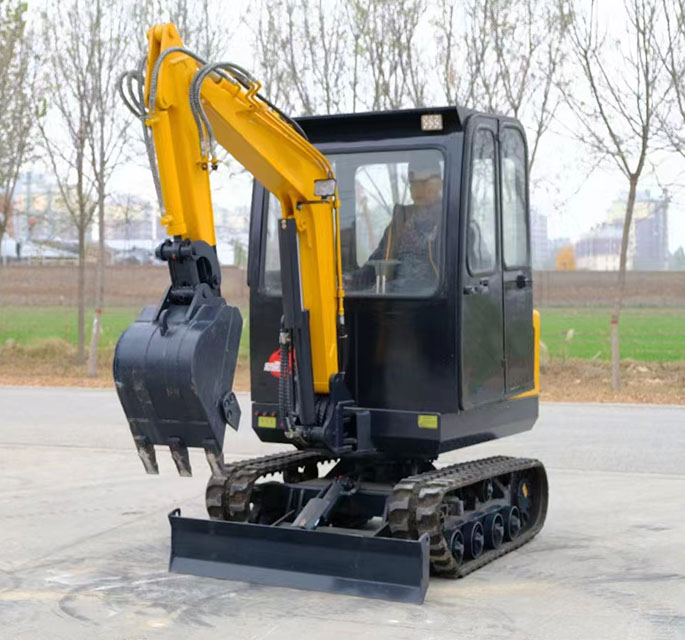

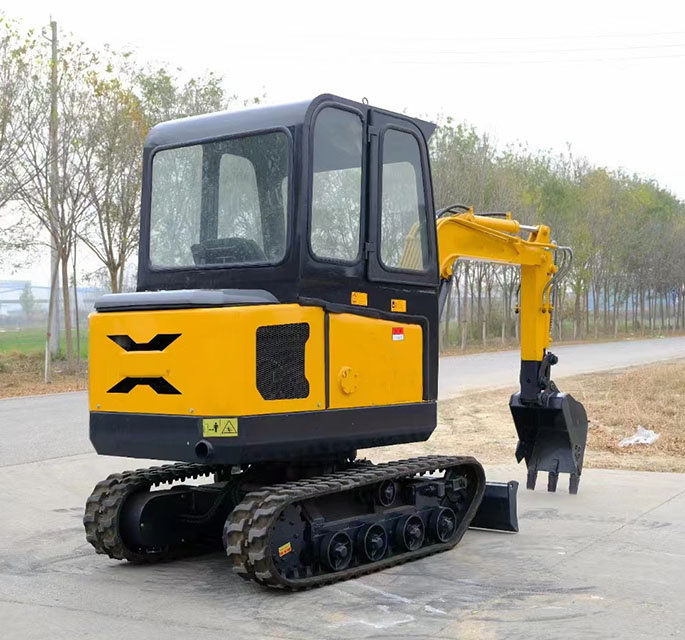

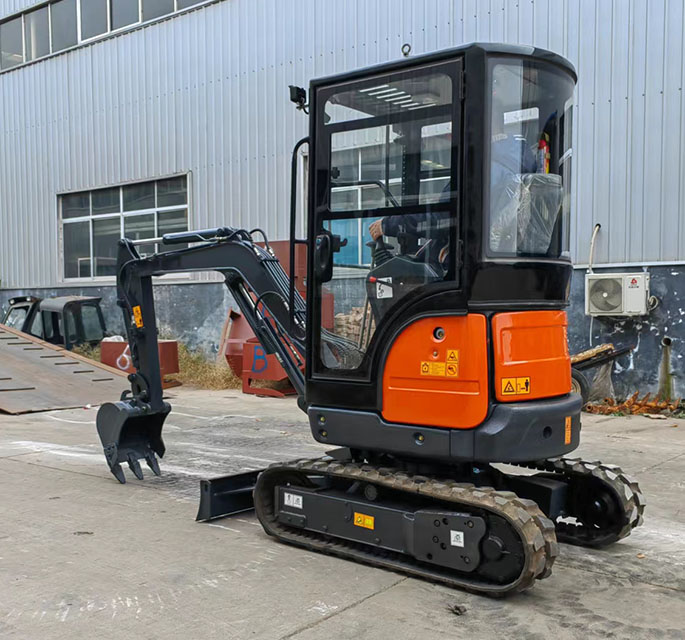

2 ton 2.2ton crawler mini excavators with closed cab
Types：Excavators
1. Air conditioning
2. High flow,double hydraulic return tubing
3. LED Lighting
4. Many machine shell convenient to disassemble, more convenient for each customers to repair.
5. The machine maintenance manual is comes with the machine
6. Direct factory
7. OEM customized
8. Professional shipping forwarder,on time and safety delivery
| Model | BS20 | |
| Specifications | Weight of the whole machine | 1650kg |
| Whole machine size | 3100*1100*2200mm | |
| Bucket capacity | 0.06m³ | |
| Bucket width | 440mm | |
| Track length | 1410mm | |
| Track width | 230mm | |
| Min. turning radius | 1680mm | |
| Height of platform | 440mm | |
| Performance | Slewing speed | 14rpm |
| Walking speed | 2.9Km/h | |
| Bucket digging force | 16KN | |
| Engine | Engine Model | Laidong 380 |
| Engine power | 14.7Kw | |
| Engine speed rating | 2200r/min | |
| Hydraulic system pressure | 18mpa | |
| Scope of work | Maximum excavation radius | 3350mm |
| Maximum excavation depth | 2042mm | |
| Maximum excavation height | 2250mm | |
| Tail turning radius | 790mm | |
| Max. sinking depth of the bulldozer | 195mm | |
| Max. lifting height of the bulldozer | 200mm | |
