BS18

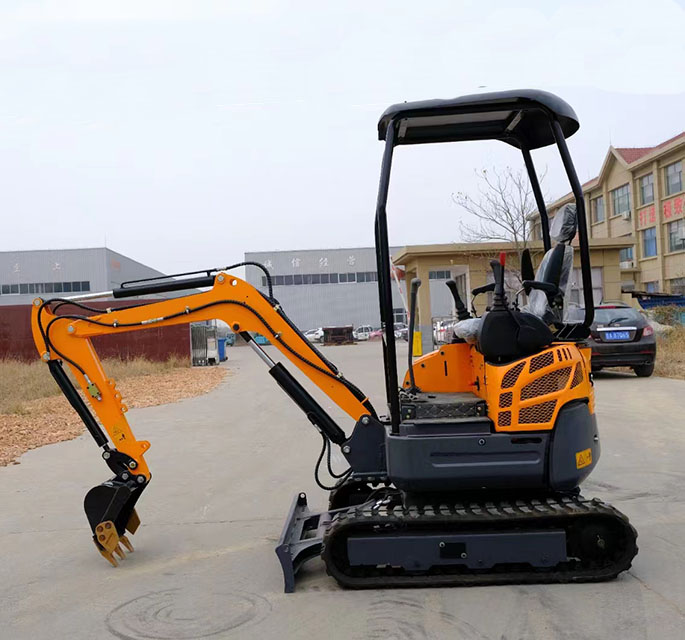

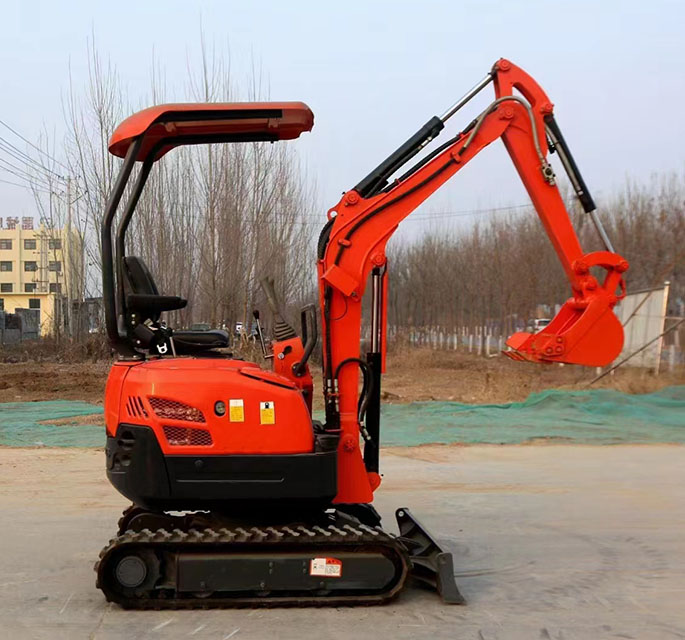

Chinese manufacturer 1000kg hydraulic crawler mini excavator with competitive prices for sale
Types：Excavators
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution.
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
We also have 0.8 ton ,1 ton,1.6 ton, 1.8 ton, 2 ton, 2.2 ton and 3.5ton mini Excavator for you too choose!
| Model | BS18 | |
| Specifications | Weight of the whole machine | 1780kg |
| Bucket capacity | 0.04m³ | |
| Bucket width | 450mm | |
| Boom length | 1823mm | |
| Bucket lenght | 1130mm | |
| Performance | Slewing speed | 10rpm |
| Walking speed | 2.2Km/h | |
| Bucket digging force | 15.2KN | |

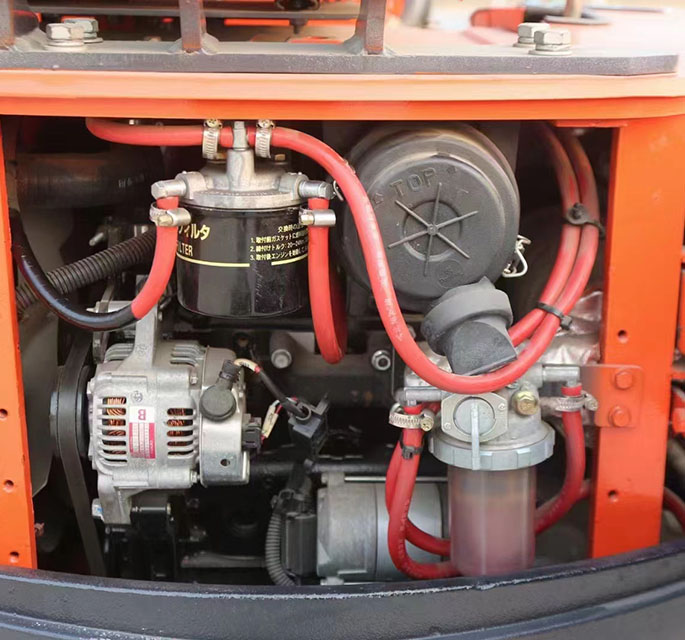

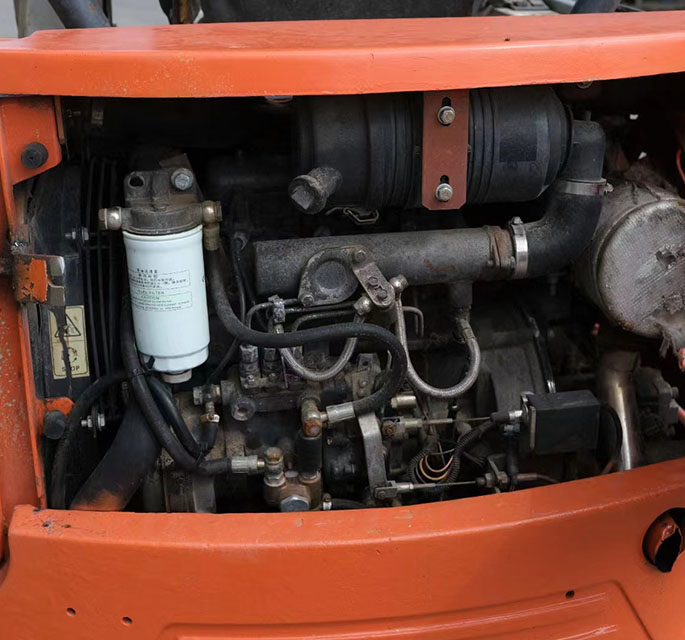

| Engine | Engine Model | LaiDong diesel KM385B |
| Rated power | 22Kw/2200rpm | |
| Displacement | 1.642L | |
| Cylinder number | 3 | |
| Body dimensions | Whole machine size | 3725*990*2300mm |
| Track Grounding Length | 1250mm | |
| Track gauge | 740mm | |
| Blade width | 990mm | |
| Scope of work | Maximum excavation radius | 3920mm |
| Maximum excavation depth | 2140mm | |
| Maximum excavation height | 3330mm | |
