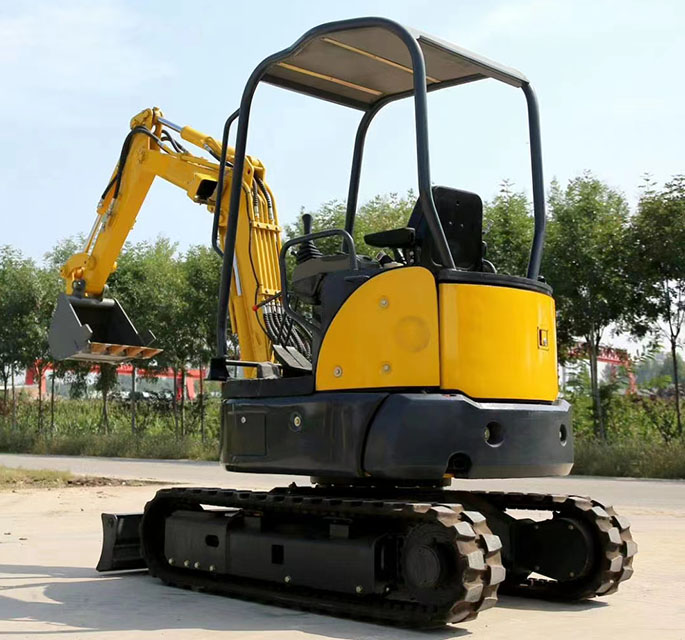

BS30
The 3ton small excavator has a unique advantage because of its low price, light weight, convenient maintenance and repair.
Types：Excavators
Due to its compact size, flexibility, versatility and high efficiency, it is very popular among users.
Wide applicability. The small digging volume is small and flexible, which is very suitable for various pipeline excavation, foundation construction, public utilities and house maintenance operations in towns and cities.
Small size and special design make it possible to work in an environment where large excavators cannot be constructed.
| Model | BS30 | |
| Specifications | Weight of the whole machine | 2870kg |
| Whole machine size | 4050*1540*2360mm | |

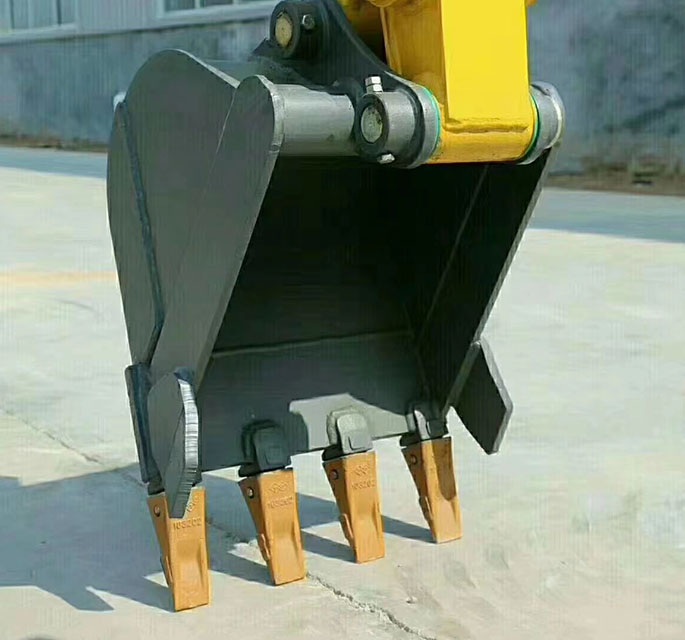

| Bucket capacity | 0.075m³ | |
| Bucket width | 550mm | |
| Track length | 1895mm | |
| Track width | 250mm | |
| Height of platform | 255mm | |
| Performance | Slewing speed | 10rpm |
| Walking speed | 4.6km/h | |
| Bucket digging force | 14.2KN | |
| Engine | Engine Model | Yanmar3TNV88 |
| Engine power | 14.7KW | |
| Engine speed rating | 2200r/min | |
| Hydraulic system pressure | 21mpa | |
| Scope of work | Maximum excavation radius | 3865mm |
| Maximum excavation depth | 2560mm | |
| Maximum excavation height | 2760mm | |
| Tail turning radius | 710mm | |
