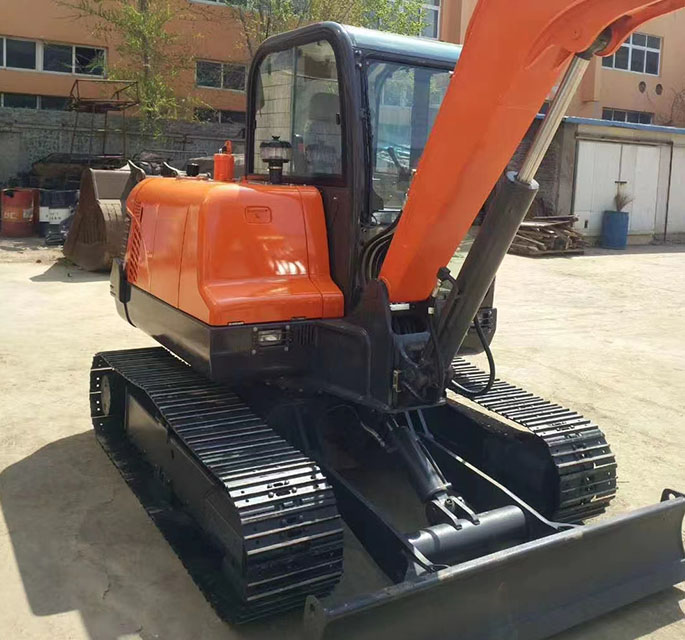

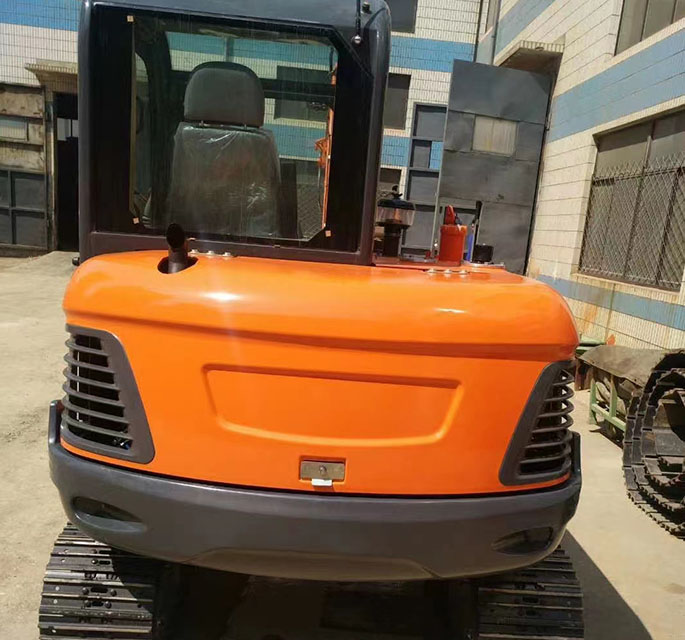

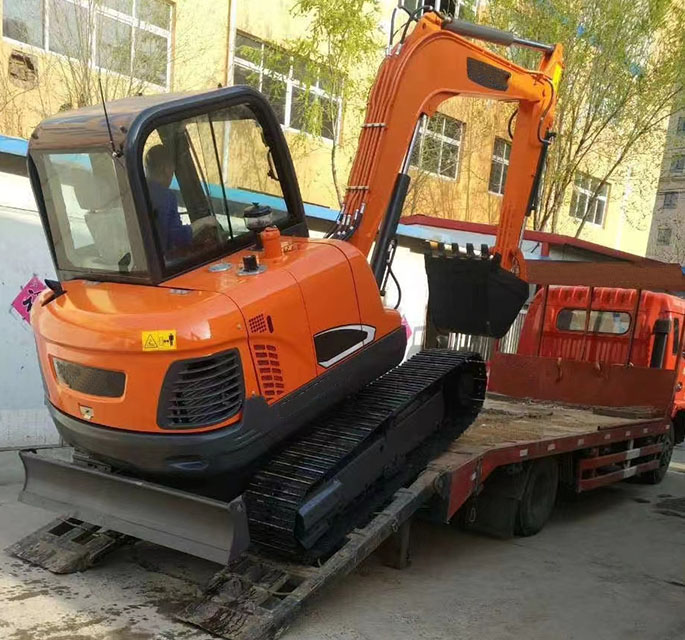

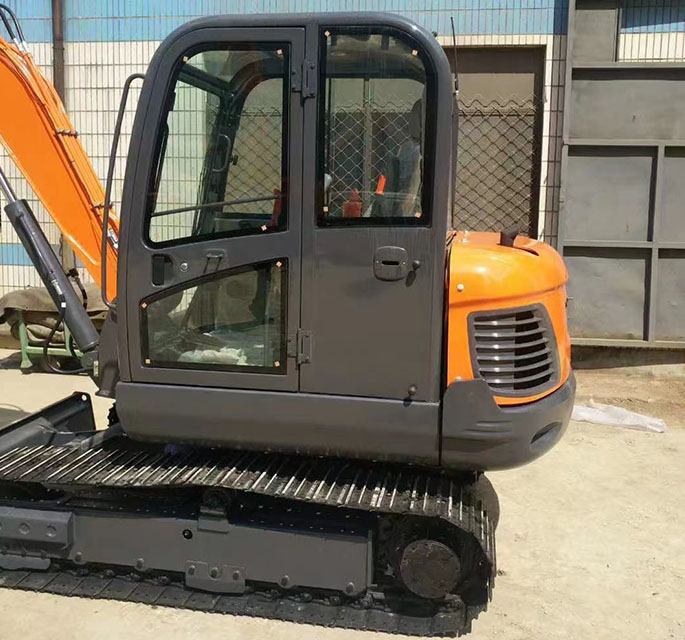

BS60
Types:Excavators
1. Ecological and economical
Adopting new environmental friendly Yanmar engine, low speed torque, low fuel consumption, high operating efficiency, reliable and durable.
It adopts a cross-stage large displacement constant power variable pump with high volumetric efficiency.
2. Multiple applications
Short tail design and short slewing radius can achieve flexible operation in confined space.
Multiple additional configurations to adapt to a variety of operating requirements.
3.Comfortable operational experience
Fresh air conditioning system to ensure the appropriate temperature.
Toughened glass cockpit with good safety view.
Detailed design concept improves comfort.
4. Excellent after-sales service
Global after-sales service system and quick response mechanism.
Real-time technical consultation and maintenance.
BS60 | |
Weight of the whole machine | 5550kg |
Whole machine size | 5850*1900*1930mm |
Bucket capacity | 0.2m³ |
Bucket width | 670mm |
Boom length | 1600mm |
Wheelbase distance | 1820mm |
Slewing speed | 9-11rpm |
Walking speed | 25km/h |
Bucket digging force | 28KN |
Engine Model | Yanmar4TNV494 |
Engine power | 38KW |
Engine speed rating | 2200r/min |
Hydraulic system pressure | 24mpa |
Maximum excavation radius | 5500mm |
Maximum excavation depth | 3500mm |
Maximum excavation height | 3900mm |
Tail turning radius | 1450mm |
