BS80W
The excavator is an economic type excavator ,which matched ISUZU engine with strong power and low noise and low consumption and environment protection. Fitted imported brand main pump and valves .
Types：Excavators

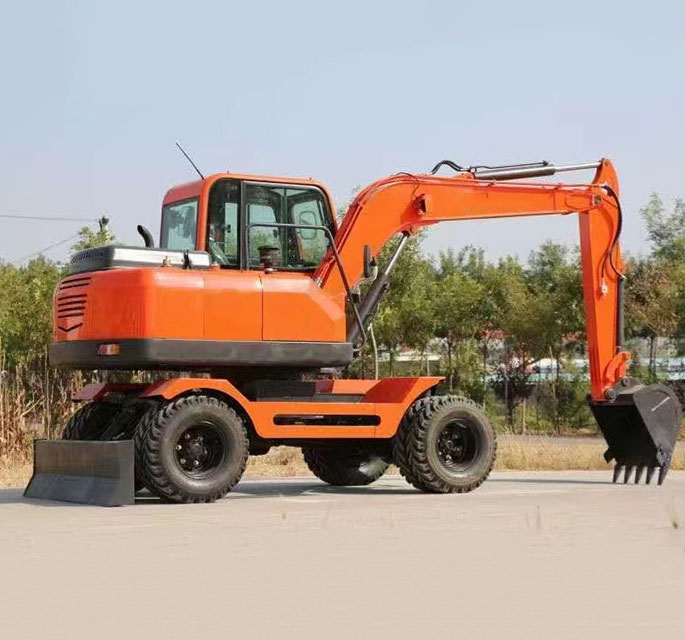

8 Ton Wheel Excavator
With YANMAR in-line four strokes engine , X80-E wheel excavator is low fuel consumption , environmental protection , convenient for repair and maintenance . Give full consideration to reduce the working oil consumption, to obtain maximum efficiency in all kinds of work site operation.
Imported original hydraulic parts, quality is reliable and stable, working efficiency is high.
| Model | BS80W | |
| Whole machine size | 6050*2120*2900mm | |
| Bucket capacity | 0.3m³ | |
| Bucket width | 700mm | |
| Boom length | 3400mm | |
| Height of platform | 1050mm | |
| Wheel base | 2350mm | |
| Performance | Slewing speed | 10.2rpm |
| Walking speed | 35km/h | |
| Bucket digging force | 60KN | |
| Engine | Engine Model | Yuchai4DK65-T303 |
| Engine power | 48KW | |
| Engine speed rating | 2200r/min | |
| Hydraulic system pressure | 22mpa | |
| Scope of work | Maximum excavation radius | 6400mm |
| Maximum excavation depth | 3350mm | |
| Maximum excavation height | 4700mm | |
| Maximum excavation radius | 6480mm | |
| Max.sinkin depth of buldozer | 290mm | |
| Max.lift height of buldozer | 350mm | |
