BS-100 -- BS-300
Types：Rotary Cultivator
Rotary tiller product selling points
1. Transmission: gear drive. By PTO linkage.
2. Gravity gearbox is made of casting iron. Material performance is better. Not easy broken.
3. The suspension plate shape is not easy to deform.
4. Chain device hand adjustable. More easy and reliable.
5. Side protection plates are added onto the rear deflection. This device prevents the soil flying out.
6. The tilling height can be adjustable.
7. The structure is firm and stable.

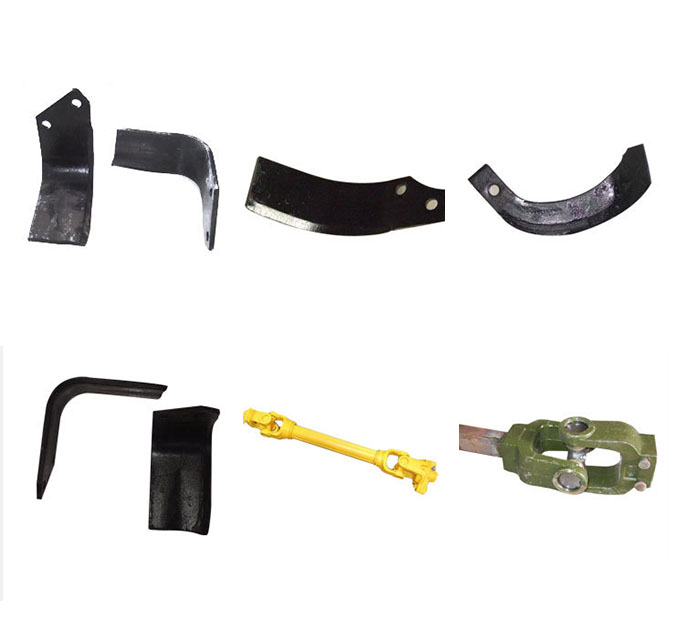

8. Cast Blades:keeping a sharp cutting edge and maximizing the performance of the chipper. They are made of special material, with over times heat treatment process to ensure great working performance.
9. The suspension plate shape is made by laser cutting,molding location

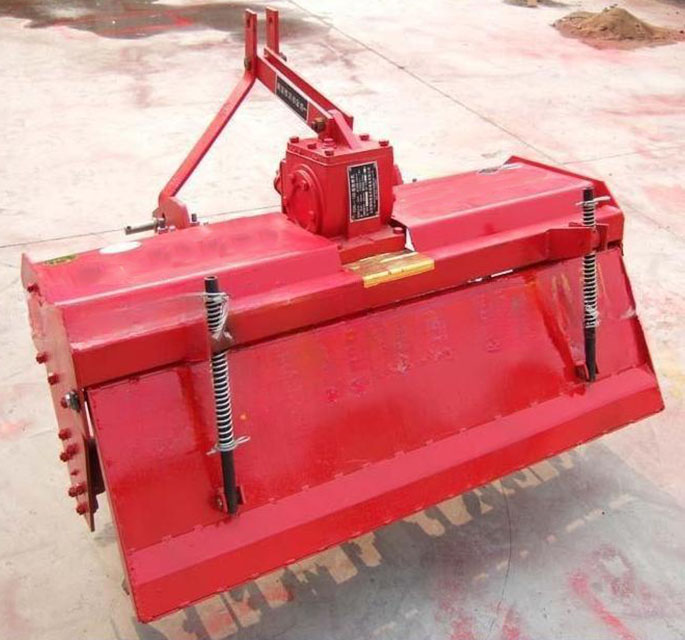

Rotary Tiller
The small box series rotary tiller adopts a mid-mounted small gearbox body and five-module gear transmission.
It is matched with a 20-40 horsepower tractor. The working width is from 100cm to 160cm.
The whole machine is light and durable. It is the first choice for small plot plowing and harrowing machine.
| Model | Matched power | Knife quantity | rotary width/cm | rotary depth/cm | Knife model | weight(kg) | size |
| BS-100 | 18-20 | 18 | 90 | 10-18 | IT25 | 180 | 1.1*0.7*0.7 |
| BS-120 | 20-25 | 22 | 110 | 10-18 | IT25 | 190 | 1.25*0.7*0.7 |
| BS-125 | 25 | 26 | 115 | 10-18 | IT25 | 195 | 1.3*0.7*07 |
| BS-140 | 25-30 | 30 | 130 | 10-18 | IT25 | 200 | 1.5*0.7*0.7 |
| BS-150 | 25-30 | 34 | 140 | 10-18 | IT25 | 210 | 1.6*0.7*0.7 |
| BS-160 | 30-40 | 38 | 150 | 10-18 | IT25 | 230 | 1.7*0.7*0.7 |
| BS-180 | 50-55 | 42 | 170 | 12-20 | IT245 | 350 | 1.9*0.75*0.75 |
| BS-200 | 55-75 | 46 | 190 | 12-20 | IT245 | 370 | 2.1*0.75*0.75 |
| BS-220 | 60-80 | 50 | 210 | 12-20 | IT245 | 390 | 2.3*0.75*0.75 |
| BS-250 | 70-90 | 58 | 240 | 12-20 | IT245 | 420 | 2.6*0.75*0.75 |
| BS-300 | 80-90 | 70 | 290 | 12-20 | IT245 | 480 | 3.1*0.75*0.75 |
| BS-250 | 90-120 | 58 | 290 | 12-20 | IT245 | 580 | 2.6*0.75*0.75 |
| BS-300 | 90-120 | 70 | 340 | 12-20 | IT245 | 600 | 3.1*0.90*0.90 |
Benefit:
1. Suitable for seedbed operations that require a high degree of soil crushing。
2. The operation effect is still obvious in harsh ground conditions, such as hard soil, paddy field, etc.
3. Significant mixing/stubbing function。
4. Simple structure and easy maintenance。
